Description:EN 10217 Stainless Steel Welded Pipe for Pressure Purpose

Standard: EN 10217

Material: 1.4301 (X5CrNi18-10), 1.4306(X2CrNi19-11), 1.4948, 1.4401(X5CrNiMo17-12-2), 1.4404 (X2CrNiMo17-12-2), 1.4571 (X6CrNiMoTi17-12-2), 1.4541 (X6CrNiTi18-10), 1.4833, 1.4878, 1.4550, 1.4462, 1.4438(X2CrNiMo18-15-4), 1.4845

Nominal Dia: 3/8" to 80" NB for welded pipe  ,
Schedules: 5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS
THk 0.02" to 1.9" (0.5mm to 48mm)

Length:20 m(Max) or as your requirement

Process: EFW (argon arc welding /TIG, plasma arc welding/PAW, and submerged arc welding/SAW)

Finish: Annealed & pickled, bright annealing, Polished

Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end

Packing: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Inspection and Test Procedure
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Transverse-guided face bend test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test  (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test  (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.

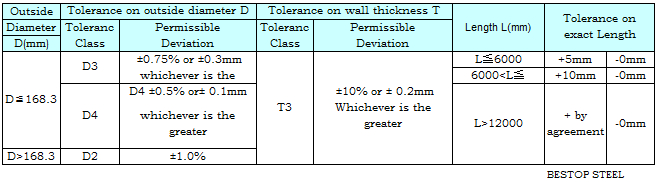

TOLERANCE ON OUTSIDE DIAMETER,WALL THICKNESS & EXACT LENGTH
