Description:ASTM A409 Welded large diameter austenitic steel pipe

Standard: ASTM A409 ,JIS G3468

Material: TP304/304L/304H, 316/316L, 321/321H, 317/317L, 347/347H, 309S, 310S, 904L

Nominal Dia: 10" to 80" NB for welded pipe  ,Schedules: 5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS
All dimensions are in accordance with ANSI B36.19 and ANSI B36.10
Length:20 m(Max) or as your requirement

Process: EFW (argon arc welding /TIG, plasma arc welding/PAW, and submerged arc welding/SAW)

Finish: Annealed & pickled,polished

Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end

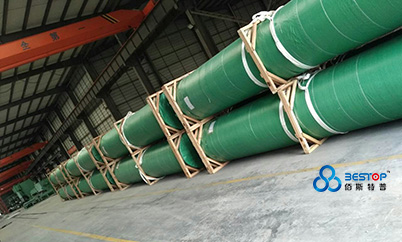

Packing: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Inspection and Test Procedure
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Transverse-guided face bend test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test  (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test  (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
